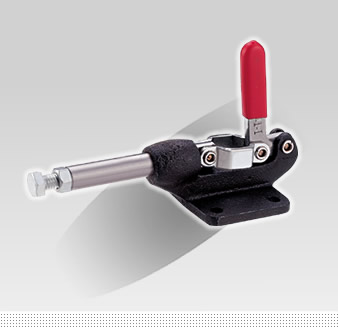

RX-441-1,RX-441-2,RX-441-3
Holding pressure:227kg, 386kg, 680kg
Weight:340g, 580g, 1480g
Push and pull action
Plunger is tapped for accepting spindle, spindle is satndard furnished
Flanged base is casted from ductile iron
Handle moves 90°
Traverse:20mm, 40mm, 60mm
Modle
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
441-1
12.7
20.2
52.4
35
8.7
41.4
8
57.2
6.7
6.4
8
30.2
25.4
20.8
125.4
4.8
90.5
52.4
441-2
16
41.4
58.8
41.4
8.7
41.4
8
57.2
8.3
8
9.5
39.7
31.8
31.8
158.8
4.8
122.2
81
441-3
19.2
60.4
73.2
50.8
11.1
50.8
10.3
71.4
8.3
8
12.7
49.2
44.6
50.8
238.2
6.4
171.6
120.8
