Toggle Clamp

Hold Down

(Horizontal Handle)



RX-209-2 RX-215-1 RX-219-1
RX-211-1 RX-216-1 RX-220-1
RX-212-1 RX-216-3 RX-220-3
RX-213-1 RX-216-5 RX-221-1
RX-213-5 RX-217-1 RX-222-1
RX-214-1 RX-218-1 RX-223-1

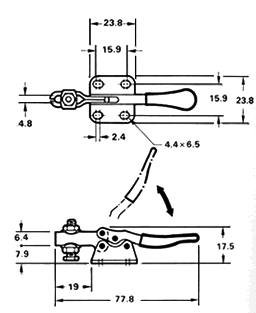

RX-211-3

  • Holding pressure:17kg
  • Weight:43g
  • "U"bar
  • Flanged base
  • Horizontal handle
  • Furnished with steel spindle.
    Size 4mmx25mm long,and flanged washer

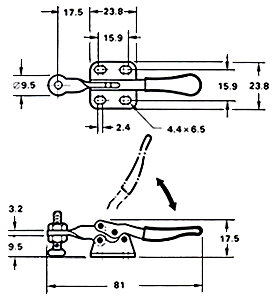

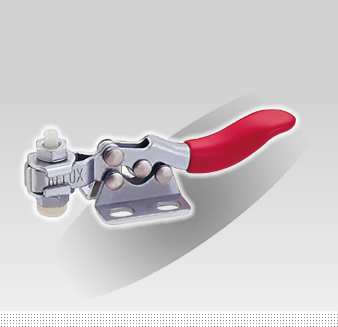

RX-211-1

  • Holding pressure:17kg
  • Weight:43g
  • Twisted bar
  • Flanged base
  • Horizontal handle
  • Furnished with nylon spindle.
    Size 4mmx25mm long
  • Steel spindle available upon request



RX-211-2

  • Holding pressure:17kg
  • Weight:43g
  • Twisted bar
  • Straight base
  • Horizontal handle
  • Furnished with nylon spindle.
    Size 4mmx25mm long
  • Steel spindle available2


RX-211-4

  • Holding pressure:17kg
  • Weight:43g
  • "U"bar
  • Straight base
  • Horizontal handle
  • Furnished with steel spindle.
    Size 4mmx25mm long
