Our Products
Toggle Clamp

Hold Down

(Horizontal Handle)



RX-209-2 RX-215-1 RX-219-1
RX-211-1 RX-216-1 RX-220-1
RX-212-1 RX-216-3 RX-220-3
RX-213-1 RX-216-5 RX-221-1
RX-213-5 RX-217-1 RX-222-1
RX-214-1 RX-218-1 RX-223-1

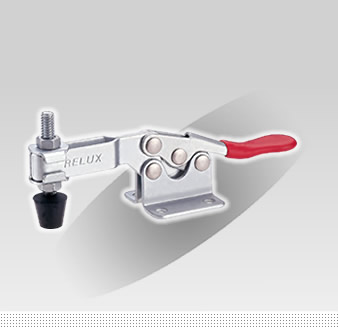

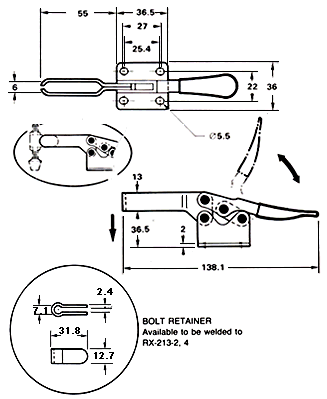

RX-213-1

  • Holding pressure:80kg
  • Weight:130g
  • "U"bar
  • Flanged base
  • Flat horizontal handle
  • Furnished with neoprene tipped spindle.
    Size 1/4"-20NCx2" long


RX-213-2

  • Holding pressure:80kg
  • Weight:130g
  • Solid bar
  • Flanged base
  • Flat horizontal handle
  • Spindle not included
  • Bolt reatiner available to be welded to solid bar end for accepting spindle.
    Size 1/4"-20NCx2" long



RX-213-3

  • Holding pressure:80kg
  • Weight:130g
  • "U"bar
  • Straight base
  • Flat horizontal handle
  • Furnished with neoprene tipped spindle.
    Size 1/4"-20NCx2" long


RX-213-4

  • Holding pressure:80kg
  • Weight:130g
  • Solid bar
  • Straight base
  • Flat horizontal handle
  • Spindle not included
  • Bolt reatiner available to be welded to solid bar end for accepting spindle.
    Size 1/4"-20NCx2" long
