Toggle Clamp

Hold Down

(Vertical Handle)



RX-121-1 RX-125-5 RX-132-1
RX-122-1 RX-126-1 RX-133-1
RX-122-2 RX-127-1 RX-134-1
RX-123-1 RX-128-1 RX-621-1
RX-124-1 RX-129-1 RX-631-1
RX-125-1 RX-130-1

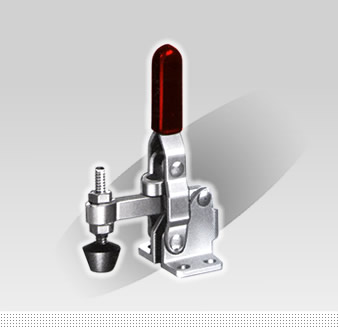

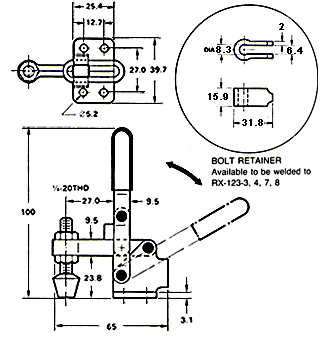

RX-123-1

  • Holding pressure:80kg
  • Weight:170g
  • Hollow head solid bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 5/16"-18NCx2"

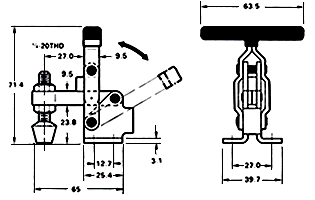

RX-123-2

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2



RX-123-3

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2


RX-123-4

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2



RX-123-5

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2


RX-123-6

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2



RX-123-7

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2


RX-123-8

  • Holding pressure:50kg
  • Weight:60g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Neoprene tipped spindle. Size 3/16"x2
