Relux Industry Co., Ltd. Our Products
About Relux
Our Products
Removable Toggle Clamp


RX-121-1 RX-125-5 RX-132-1
RX-122-1 RX-126-1 RX-133-1
RX-122-2 RX-127-1 RX-134-1
RX-123-1 RX-128-1 RX-621-1
RX-124-1 RX-129-1 RX-631-1
RX-125-1 RX-130-1

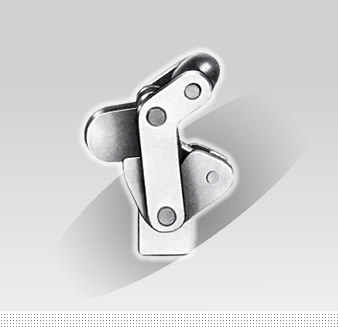

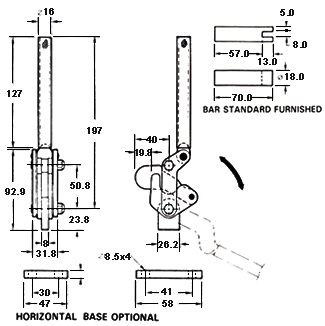

RX-621-1

  • Clamping pressure:4444kg
  • Weight:590g
  • Very heavy clamping pressure,well suited for clamping steel plate for welding in automative industry
  • Handle is standard furnished
  • Horizontal base may be supplied upon request
  • Solid bar standard,for extending hold down position
  • Forged steel constructed and surface ground

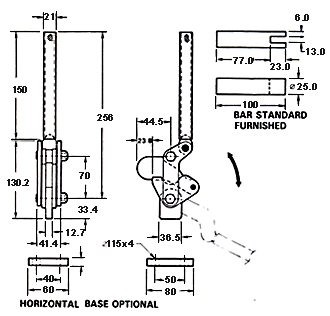

RX-621-2

  • Clamping pressure:600kg
  • Weight:750g
  • The modle is similar to RX-621, but bigger size, heavier clamping pressure than RX-621-1.
