Toggle Clamp

Hold Down

(Vertical Handle)



RX-121-1 RX-125-5 RX-132-1
RX-122-1 RX-126-1 RX-133-1
RX-122-2 RX-127-1 RX-134-1
RX-123-1 RX-128-1 RX-621-1
RX-124-1 RX-129-1 RX-631-1
RX-125-1 RX-130-1

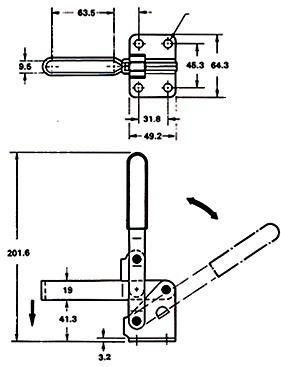

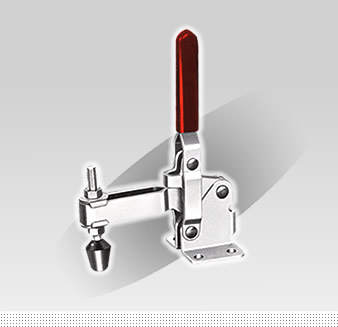

RX-126-1

  • Holding pressure:330kg
  • Weight:600g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Furnished with neoprene tipped spindle. Size 3/8"-16NCx3"

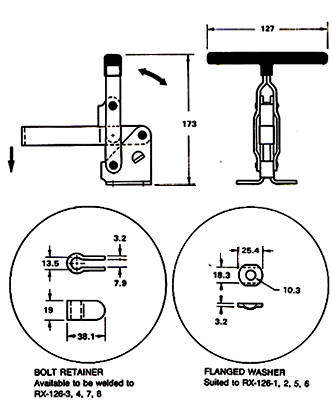

RX-126-2

  • Holding pressure:330kg
  • Weight:600g
  • "U"bar
  • Flanged base
  • "T" handle
  • Furnished with neoprene tipped spindle. Size 3/8"-16NCx3"

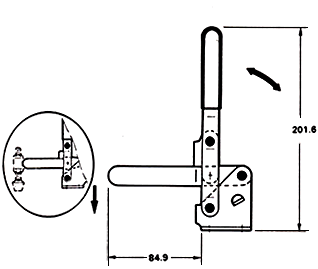

RX-126-3

  • Holding pressure:330kg
  • Weight:600g
  • Solid bar
  • Flanged base
  • Vertical handle
  • Spindle not included
  • Bolt retainer available to be welded to bar end for accepting spindle. Size 3/8"x2 -16NCx3"


RX-126-4

  • Holding pressure:330kg
  • Weight:600g
  • Solid bar
  • Flanged base
  • "T" handle
  • Spindle not included
  • Bolt retainer available to be welded to solid bar end for accepting spindle. Size 3/8" -16NCx3"





RX-126-5

  • Holding pressure:330kg
  • Weight:600g
  • "U"bar
  • Straight base
  • Vertical handle
  • Furnished with neoprene tipped spindle. Size 3/8"-16NCx3"
    solid bar end for accepting spindle. Size 3/8"-16NCx3"


RX-126-6

  • Holding pressure:330kg
  • Weight:600g
  • "U"bar
  • Straight base
  • "T" handle
  • Furnished with neoprene tipped spindle. Size 3/8"-16NCx3"





RX-126-7

  • Holding pressure:330kg
  • Weight:600g
  • Solid bar
  • Straight base
  • Vertical handle
  • Spindle not included
  • Bolt retainer available to be welded to solid bar end for accepting spindle. Size 3/8" -16NCx3"


RX-126-8

  • Holding pressure:330kg
  • Weight:600g
  • Solid bar
  • Straight base
  • "T" handle
  • Spindle not included
  • Bolt retainer available to be welded to solid bar end for accepting spindle. Size 3/8" -16NCx3"
