Hydraulic Work Support Cylinder

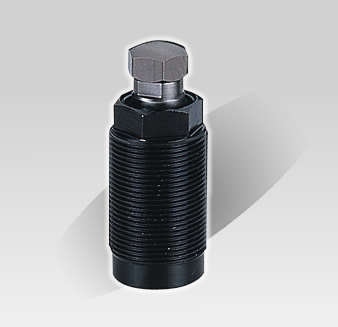

This hydraulic work support cylinder is suitable for use in mechanical processing devices. It can be used to reduce vibration and prevent deformation, etc.
The SP-16 threaded-body cylinder is very compact and may be used in camping devices where cylinders must be arranged in a confined space.
For high pressure resistance and top quality, this product employs imported pressure seals and parts.
To prevent the rod from striking the working, the oil filling rate must not be too fast.

Introduction to type A and B:

Type A:Spring push type; after the rod haspushed upward to the maxmum positionand touches the contact force.
Type B: Hydraulic push type: the rod is push out hydraulically from the minimum postition; a spring controls the contact force.

SP-16A

SP-16B

SP-16 Base

SP-25A

SP-25B

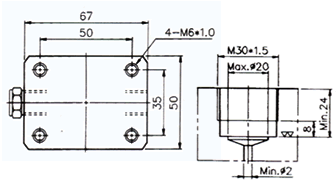

Schematic diagram of base installatiom

	SP-16A1	SP-16A2	SP-16B1	SP-16B2	SP-25A	SP-25B
Rod Size mm	Ø 16				Ø 25
Stroke mm	8				12
Min. Operating Pressure	100 Kg/cm²
Spring Froce	Min=0.8kg Max=1.3kg		Min=1kg Max=2.3kg		Min=3kg Max=5kg
Support Pressure 500kg/cm²	650kg	950kg	650kg	950kg	2000kg
A mm	80.5	90.5	72.5	82.5	98	101
B mm	79	89	71	81	80	95
C mm	54	64	54	64	58	73
